NNEOBA Mini Full-Band Radio Receiver Black

Compact yet powerful — experience full-band reception and crystal-clear sound anywhere, anytime.

Specifications

• Color: Black

• Type: Style B

• Master Control Chip: ESP-32-S3

• Display: 1.9-inch IPS color screen (170 × 320 resolution)

• Brightness: Adjustable (32–255 levels)

• Working Modes: FM / AM / LSB / USB (not supporting aviation band)

• Receiving Bands: HF / SW / MW / VHF

• Frequency Range: LW, MW, SW (150 kHz – 30 MHz), VHF (64 – 108 MHz)

• Audio Interface: 3.5 mm three-band stereo jack

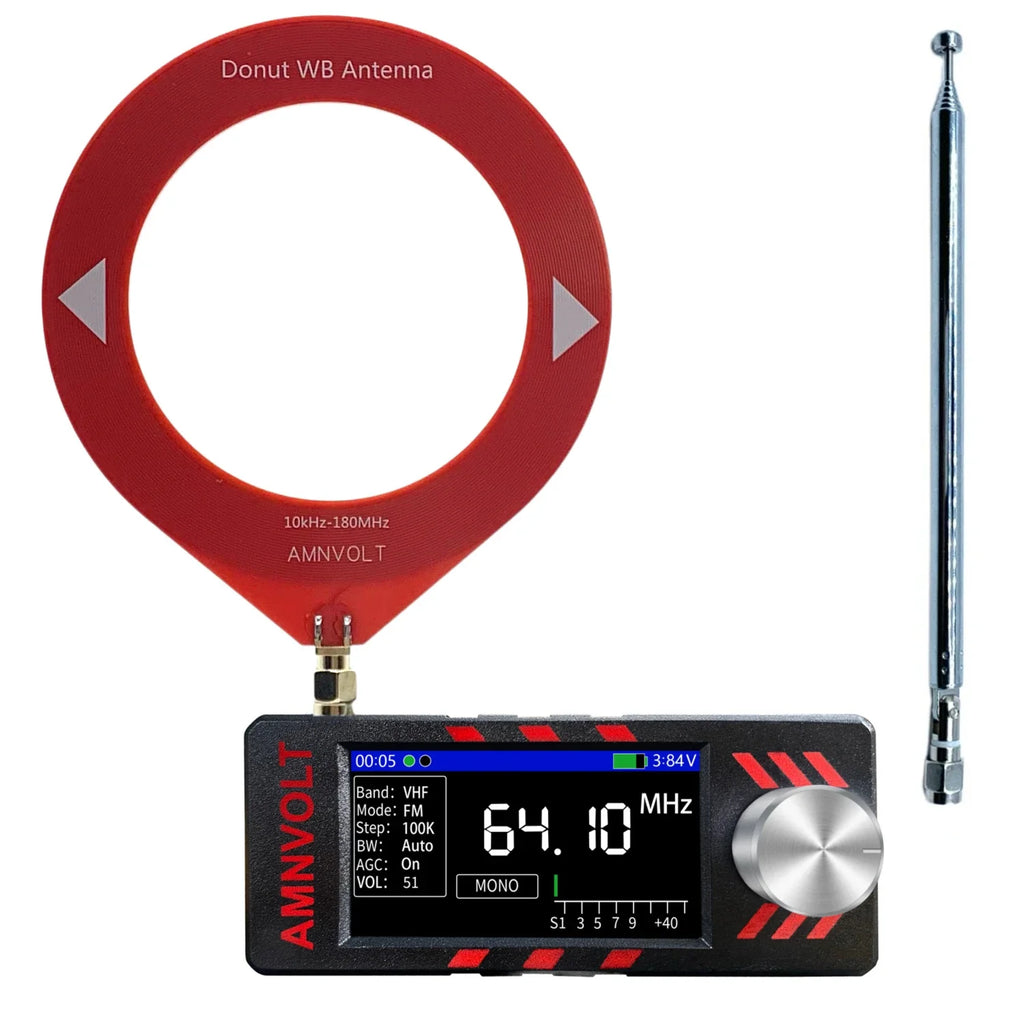

• Antenna Interface: SMA-KE (inner hole)

• Output Power: 1 W built-in speaker

• Battery Capacity: 800 mAh (≈10 hours playback)

• Charging Port: Type-C (standard charging only)

• Casing Material: Durable ABS injection-molded shell

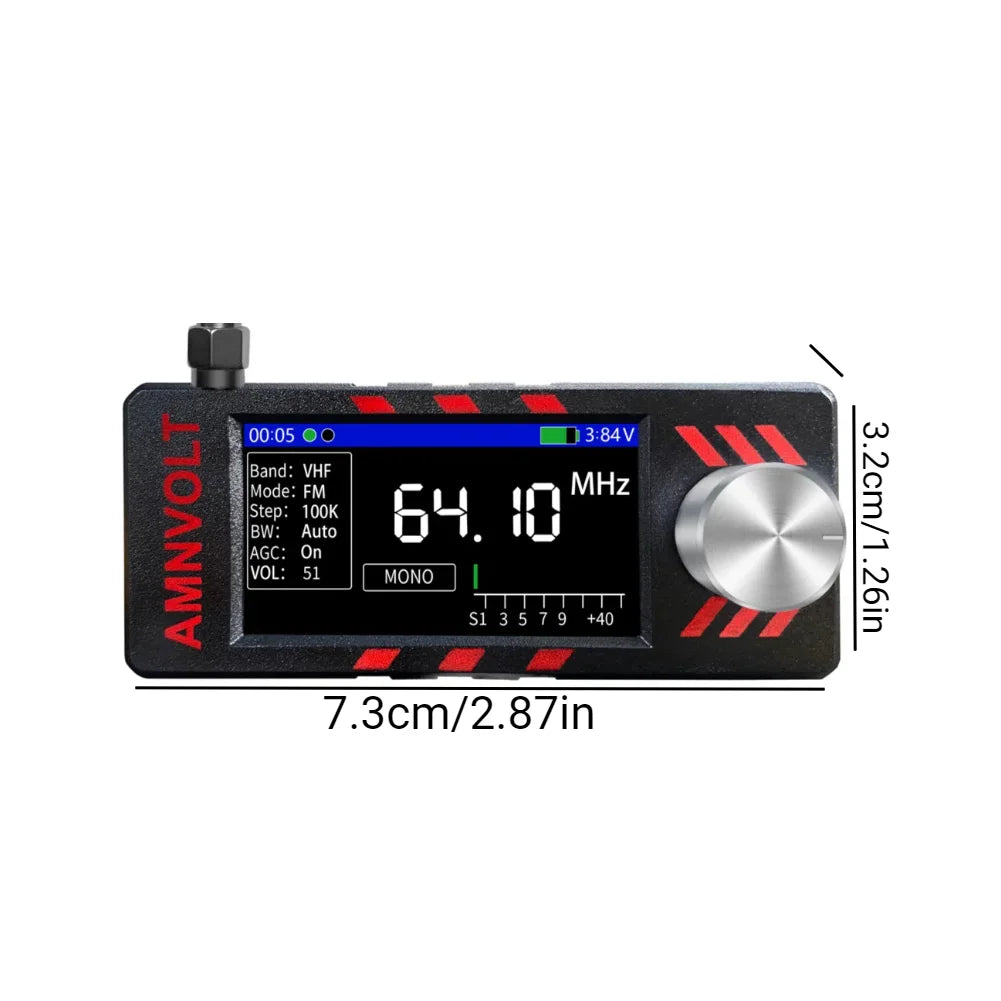

• Product Size: 73 × 32 × 12 mm (2.87 × 1.26 × 0.47 in)

Features

• Full-Band Coverage: Supports FM, AM, LSB, USB, and SSB modes for versatile listening across all major frequency bands.

• Superior Reception: Built-in Hi-Z circuit enhances weak signal resolution for clearer, more stable audio.

• Hi-Fi Headphone Amplifier: Integrated amplifier circuit delivers louder, richer sound when using headphones.

• Advanced DSP Chip: Powered by the SI4732 DSP, ensuring precise tuning and excellent sensitivity on every band.

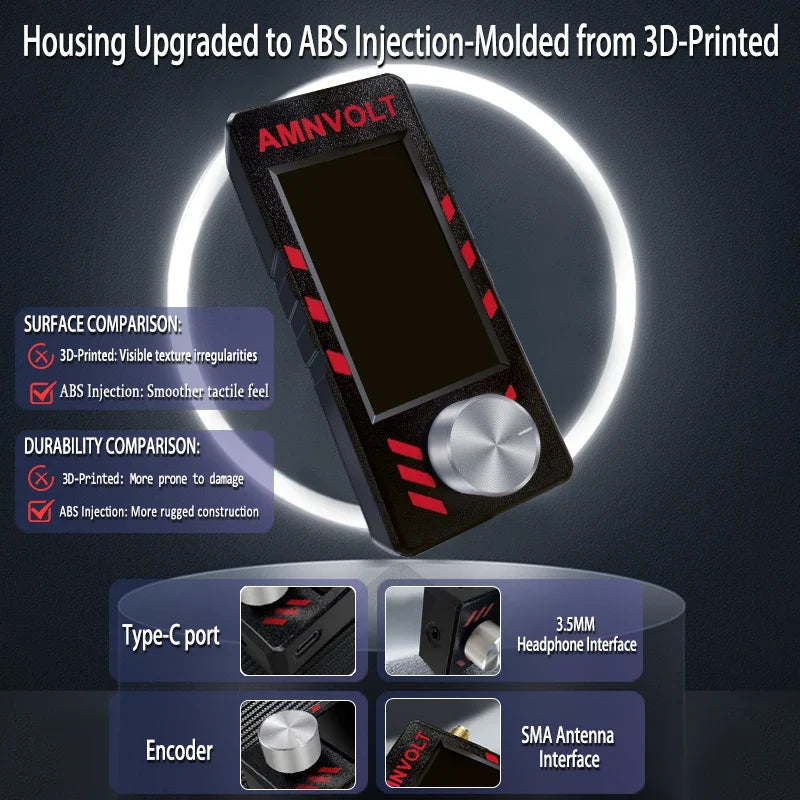

• Sturdy & Durable: Made with high-quality ABS casing — stronger and more reliable than 3D-printed housings.

• Energy Efficient: Optimized circuitry prevents battery drain after shutdown for longer standby time.

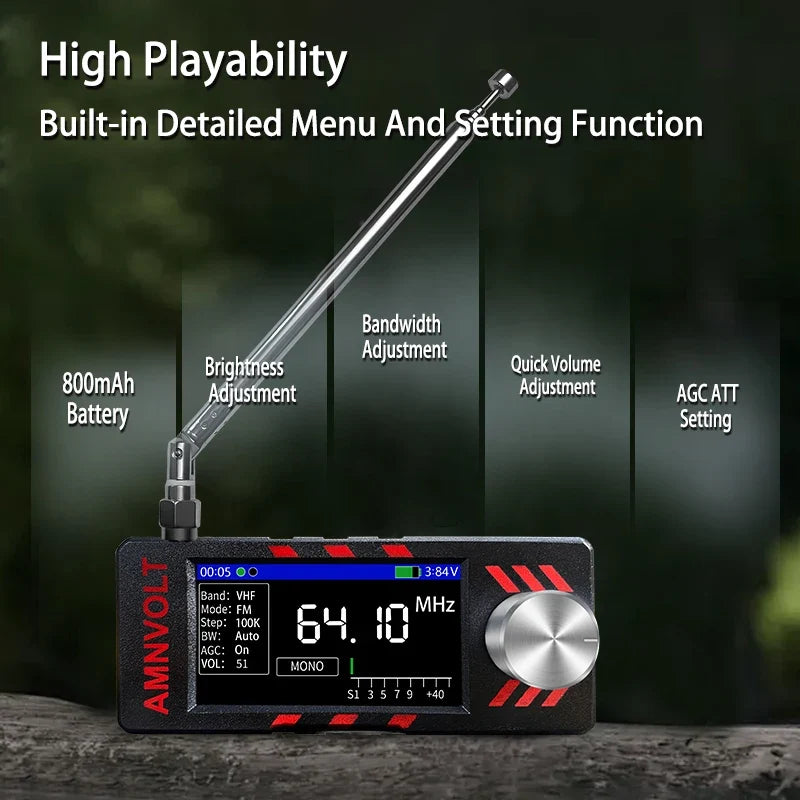

• User-Friendly Interface: Bright 1.9-inch IPS color display with adjustable backlight, battery indicator, and intuitive menu.

• Long Playback Time: 800 mAh rechargeable battery provides over 10 hours of continuous listening.

Product Description

Experience professional-grade radio performance in the palm of your hand with the Mini Full-Band Radio Receiver. Designed for serious radio enthusiasts and casual listeners alike, this compact receiver supports FM, AM, SSB, LSB, and USB modes — giving you access to a wide range of frequencies from 150 kHz to 108 MHz. Powered by the advanced SI4732 DSP and ESP-32-S3 controller, it ensures exceptional reception and stability even in low-signal areas.

The built-in Hi-Z circuit and headphone amplifier deliver crystal-clear sound with enhanced sensitivity and volume. Its durable ABS injection-molded casing, bright 1.9-inch IPS display, and adjustable backlight make it as practical as it is stylish. Lightweight, portable, and equipped with long battery life, this pocket-sized powerhouse is perfect for travel, outdoor exploration, or everyday use.
